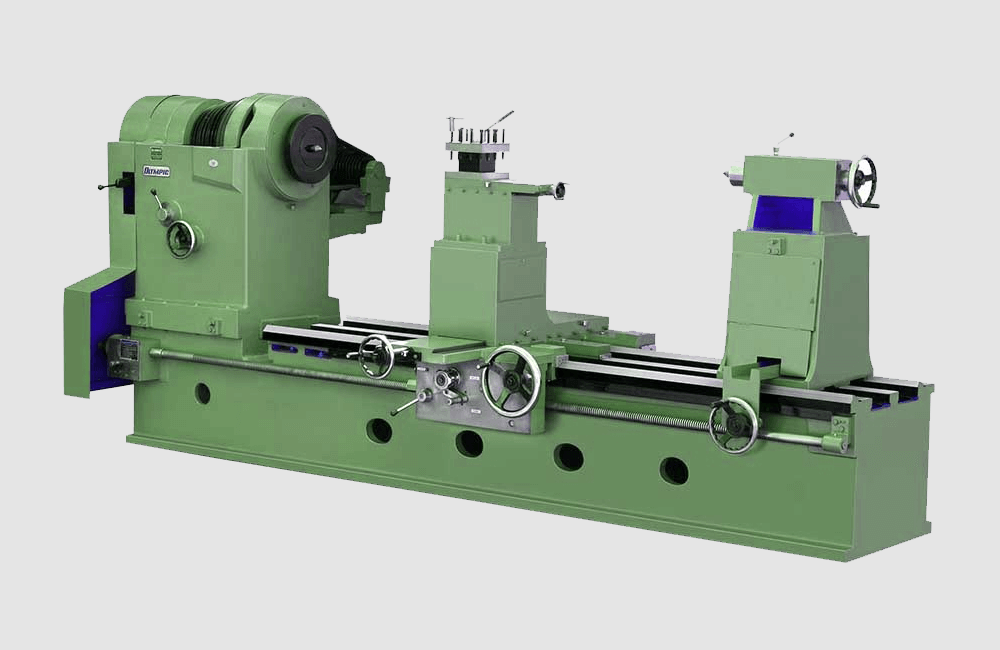

PLANNER TYPE EHDP SERIES

HMP Offers Planner Type EHDP Series Lathe Machine on Inquiry Basis as per customer’s requirement.

Features & Applications

Automobiles

Metalworking

Wood turning

Metal Spinning

Textile Machinery

Collage Workshops

Workshop Machinery

Die & Mould Manufacturers

Diamond & Jewellery Industries

All Small, Medium and Large industries

Std. Accessory:

Extra Accessory:

Model	EHDP	EXHDP
Center	710	860
Swing Over Bed	1370	1675
Swing Over Cross Side	1050	1350
Swing In Gap	1930	2235
BED SPECIFICATION
Bed Type	2V 3F (Plano)	2V 3F (Plano)
Bed Width	760	910
Length Of Gap In Front Of	300	300
Face Plate
HEAD STOKE SPECIFICATION
Number Of Spindle Speed	6	6
Rang Of Spindle Speed	10 – 150 RPM	10 – 150 RPM
Spindle Nose Diameter	160	160
Spindle Bore	120	120
Spindle Threads	6 TPI	6 TPI
Taper in Spindle Sleeve	MT-6	MT-6
TAIL STOKE SPECIFICATION
Spindle Ram Diameter	125	125
Spindle Ram Travel	406	406
Taper In Tail Stock Quill	MT – 6	MT – 6
CARRIAGE COMPOUND SPECIFICATION
Cross Slide Travel	710	860
Compound Slide Travel	330	330
Tool Post Square	228	250
THREADS SPECIFICATION
No. of Threads Range in Metric	24/0.5 To 6 PITCH	24/0.5 To 6 PITCH
No. of Threads Range in Inch	43/2 To 60 TPI	43/2 To 60 TPI
Lead Screw Diameter	50	50
ELECTRICALS SPECIFICATION
Motor Recommend ended	15 H.P.	15 H.P.
