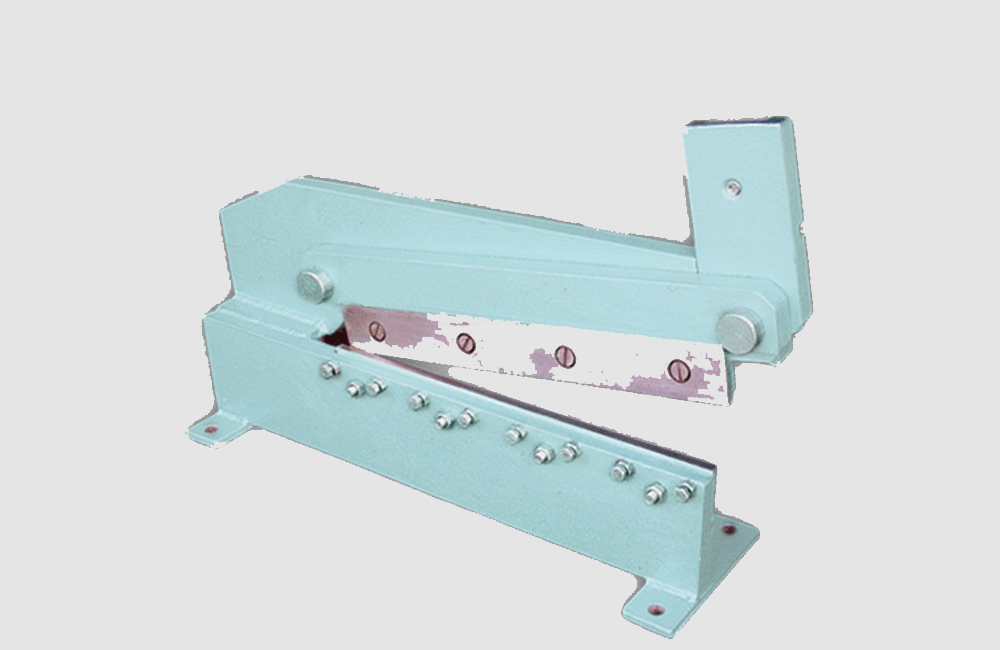

LEVER SHEARING MACHINES (GEARD TYPE)
Specifications
| HAND OPERATED LEVER SHEARING MACHINES (GEARD TYPE) | |||||
|---|---|---|---|---|---|
| MODEL | 6/200 | 4/7R | 5/300 | 4/400 | 3/500 |
| MILD STEEL PLATES UPTO | 2 MM | 4 MM | 3 MM | 1.5 MM | 1.5 MM |
| MAX. CUT IN ONE STROKE | 150 MM | – | 240 MM | 335 MM | 425 MM |
| FLAT UPTO | 50 X 6 MM | 75 X 6 MM | 50 X 5 MM | 50 X 4 MM | 50 X 3 MM |
| ROUND UPTO | 12 MM | 10 MM | 10 MM | – | – |
| SQUARE UPTO | – | 10 MM | – | – | – |
| LEANGTH OF BLADE (APPROX.) | 200 MM | 178 MM | 300 MM | 400 MM | 500 MM |
| NETT WEIGHT (APPROX.) | 20 KG | 35 KG | 35 KG | 65 KG | 70 KG |
